Pipe Fittings for Rainwater Systems: Types, Uses, and Installation Tips

Rainwater harvesting systems depend on pipe fittings to ensure optimal water flow and reduce mains water usage. Made from materials like PVC or stainless steel, fittings integrate with filters and diverters to provide a cleaner water supply. Proper installation using tools like pipe wrenches and a spirit level ensures reliable performance. Selecting tanks (e.g., APR Tanks) based on the correct tank size and iso9001 standards enhances durability and efficiency.

Key components such as drain pipes, flush pipes, and inlet pipes support functionality, while uv-resistant materials protect systems. Tools like level gauges and dipsticks aid monitoring. Consulting a licensed plumber, following installation instructions, and ensuring a proper tank foundation improve outcomes. Aligning systems with off-grid or mains water supply needs promotes sustainability and safe water for drinking.

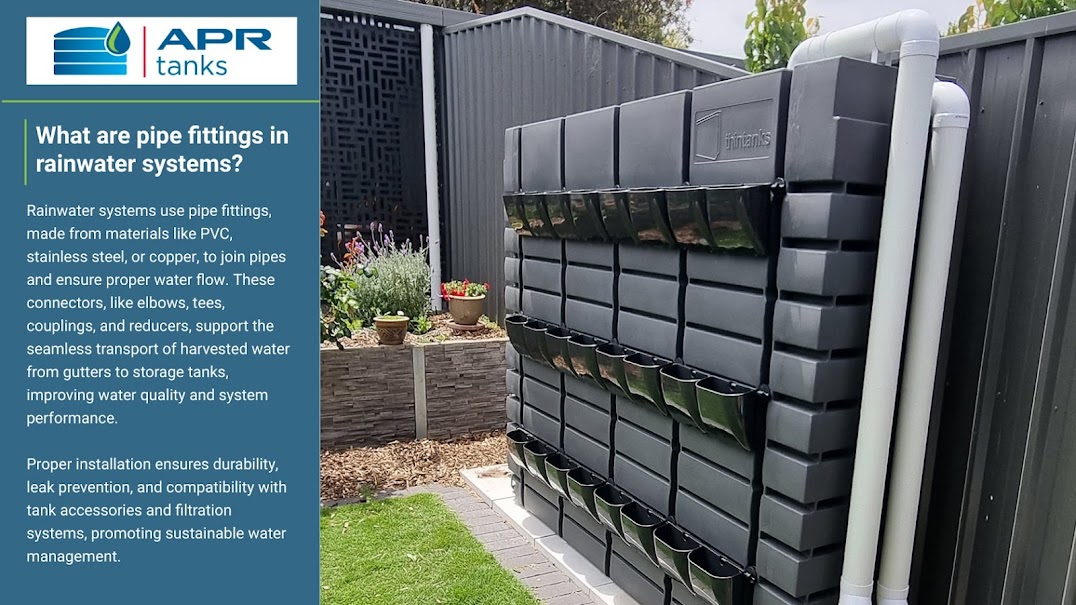

What are pipe fittings in rainwater systems?

Rainwater systems use pipe fittings, made from materials like PVC, stainless steel, or copper, to join pipes and ensure proper water flow. These connectors, like elbows, tees, couplings, and reducers, support the seamless transport of harvested water from gutters to storage tanks, improving water quality and system performance. Proper installation ensures durability, leak prevention, and compatibility with tank accessories and filtration systems, promoting sustainable water management.

How are these pipe fittings installed?

Installing pipe fittings in rainwater systems involves the following steps:

1. Preparation: Measure and cut pipes to the required lengths using a pipe cutter. Ensure clean, smooth edges to prevent leaks.
2. Selection: Choose fittings that match the pipe material and diameter (e.g., PVC, stainless steel). Use fittings designed for rainwater systems, such as elbows, couplings, or reducers.
3. Connection: Attach fittings to pipes using appropriate methods:
   • For PVC: Apply PVC primer and adhesive to both the pipe and fitting ends before joining.
   • For threaded fittings: Wrap threads with plumber’s tape and tighten securely.
4. Alignment: Ensure proper alignment using tools like a spirit level to maintain consistent water flow.
5. Sealing: Check joints for tightness and apply sealant if necessary to prevent leaks.
6. Testing: Once installed, run water through the system to check for leaks and proper flow.

What tools are needed to install fittings?

Rainwater systems require the use of essential tools like pipe cutters, wrenches, and sealant applicators for proper installation. Pipe wrenches tighten bulkhead fittings, thread tape seals national pipe connections, and channel lock pliers secure barbed fittings to flexible hose. Hole saws create precise openings for poly or flexible piping. Accurate measurement and cutting ensure fitting alignment, prevent leaks, and system efficiency. These tools enhance the durability and performance of rainwater systems, ensuring a reliable and efficient rainwater collection system.

How do pipe fittings affect water flow?

The design and configuration of pipe fittings significantly impact the efficiency and direction of water flow in rainwater systems. Properly selected inlets and tank outlets ensure smooth changes and reduce resistance. Galvanized poly piping offers durable solutions, while water tank outlet fittings direct flow from storage to usage areas. Proper alignment of tank inlet and bulkhead fittings prevents leaks and ensures ideal flow. Flexible hose kits offer flexibility and secure bonding in polyethylene systems.

What materials are used in these pipe fittings?

Installing pipe fittings in rainwater systems involves the following steps:

1. 1. Preparation: Measure and cut pipes to the required lengths using a pipe cutter. Ensure clean, smooth edges to prevent leaks.
   2. Selection: Choose fittings that match the pipe material and diameter (e.g., PVC, stainless steel). Use fittings designed for rainwater systems, such as elbows, couplings, or reducers.
   3. Connection: Attach fittings to pipes using appropriate methods:
      For PVC: Apply PVC primer and adhesive to both the pipe and fitting ends before joining.
      For threaded fittings: Wrap threads with plumber’s tape and tighten securely.
   4. Alignment: Ensure proper alignment using tools like a spirit level to maintain consistent water flow.
   5. Sealing: Check joints for tightness and apply sealant if necessary to prevent leaks.
   6. Testing: Once installed, run water through the system to check for leaks and proper flow.

What sizes are available for these fittings?

Pipe fittings for rainwater systems come in various sizes to match the pipes and system requirements.

Common sizes include:

1. Small diameter:
   ½ inch (15mm) and ¾ inch (20mm): Typically used for small-scale systems, garden irrigation, or low-flow applications.
2. Medium diameter:
   1 inch (25mm) to 2 inches (50mm): Common for residential rainwater systems and connecting tank accessories.
3. Large diameter:
   3 inches (75mm) and above: Used for high-capacity systems, commercial setups, or primary drainage lines.
4. Custom sizes: Available for specialised systems or large-scale installations.

How do pipe fittings connect to tanks?

Pipe fittings connect to tanks by integrating with the tank’s inlet, outlet, or accessory ports. These fittings are typically threaded, flanged, or push-fit, depending on the tank design. Threaded fittings screw directly into pre-fabricated ports on the tank, often sealed with plumber’s tape or gaskets to ensure watertight connections. Push-fit or slip connections are used for PVC fittings, secured with adhesive for a leak-proof bond. Flanged fittings involve bolts and a gasket for secure attachment, commonly used in larger tanks.

What types of fittings are best for rainwater systems?

The best types of fittings for rainwater systems depend on the system’s design, materials, and purpose. Commonly preferred fittings include:

1. PVC fittings: Lightweight, corrosion-resistant, and cost-effective, ideal for most residential systems.
2. Threaded fittings: Provide secure, reusable connections, often used for tank outlets and components requiring maintenance.
3. Flexible couplings: Allow for slight misalignments and thermal expansion, enhancing durability.
4. Compression fittings: Offer watertight seals without adhesives, suitable for easy assembly and disassembly.
5. Quick-connect fittings: Enable rapid setup, commonly used in garden or irrigation extensions.
6. Reducer fittings: Facilitate transitions between different pipe sizes, ensuring smooth water flow.
7. Elbows and tees: Aid in routing water efficiently around obstacles or splitting flow to multiple tanks or outlets.

How do you choose fittings for polyethylene tanks?

Choosing fittings for polyethylene tanks is vital for efficient water management. Match tank fittings with the tank wall, inlet hole, outlet hole, and overflow pipe dimensions, using PVC piping or flexible pipes for compatibility. Select materials approved for contact with drinking water, prioritizing uv-resistant and premium materials for durability. Include components like water diverters, overflow pipe connectors, and pipe inlets to optimise efficient water usage and ensure the quality of water entering the tank.

Place the tank on a level spot, aligning the gutter outlet with a leaf screen to prevent debris entry. Accessories like filters, water level gauges, and flex hoses improve functionality. When selecting a choice for rainwater tank, consider roof size (feet of roof) and capacity needs for consistent quality and enhanced performance, especially in off-grid setups.

Can PVC fittings be used for potable water?

PVC fittings are safe for potable water applications when they meet nsf/ansi 61 certification standards. They are important in rainwater harvesting systems, connecting pipes to water storage tanks and pumps. Ensuring secure connections is essential for maintaining water quality. Properly installed PVC fittings transport potable water efficiently, making them a reliable choice in rainwater systems. Using certified PVC fittings ensures a safe water supply, making them a reliable choice for rainwater management solutions.

How do fittings integrate with filtration systems?

They connect the inlet pipe from gutter outlets to the filtration unit, directing water through pre-filtration systems. Post-filtration, they connect the filtered water to the tank wall, guiding it to storage. Fittings like couplings, elbows, or tees ensure pipe alignment, and adaptors help transition between different sizes or materials. Proper sealing prevents leaks and enhances performance.

What is the purpose of an inlet strainer in piping?

An inlet strainer prevents debris from entering the system and ensuring efficient integration of fittings with filtration components. It acts as the first line of defence against debris from leaves and other sources. Rainwater diverters often have a built-in leaf filter or leaf eater, which helps maintain water supply cleanliness. Mosquito proof strainers and gutter guards further enhance protection.

How does an overflow outlet prevent flooding?

Overflow outlets integrates with filtration components to manage water flow efficiently. In rainwater storage systems, they direct surplus water away from slimline tanks, preventing damage. Positioned under the gutter, these outlets ensure proper drainage. Slimline rainwater tanks integrate these outlets for efficient rainwater management and filtering, minimising flooding risks and maximising resource use.

What are the benefits of durable fittings?

Durable fittings offer numerous benefits in rainwater harvesting systems:

1. Leak prevention: High-quality, durable fittings ensure watertight seals, reducing the risk of leaks that could compromise water storage and system efficiency.
2. Longevity: Made from robust materials like uv-resistant PVC, stainless steel, or brass, durable fittings withstand environmental stress, including sun exposure and temperature changes.
3. Consistent performance: They maintain consistent quality and peak performance, ensuring smooth water flow and reliable integration with tanks, pipes, and filtration systems.
4. Cost-effectiveness: Their long lifespan minimises the need for frequent replacements or repairs, reducing maintenance costs.
5. Safety: Durable, certified fittings are suitable for contact with drinking water, ensuring a clean and safe water supply.
6. Versatility: They support complex setups with water diverters, overflow pipes, and filtration components, enhancing the system’s overall functionality and efficiency.

How do you maintain pipe fittings?

Maintaining fittings in rainwater systems involves regular inspection, cleaning, and timely repairs to ensure optimal performance. Here’s how to maintain them effectively:

1. Inspect regularly: Check fittings for cracks, leaks, or signs of wear, especially around seals and connections like the inlet hole, outlet hole, and overflow pipe. Ensure fittings remain securely attached to the tank wall and piping.
2. Clean periodically: Remove debris or buildup inside the fittings, particularly those connected to filters, water diverters, or pipe inlets, to prevent blockages that could impede water flow.
3. Tighten connections: Use tools like pipe wrenches to tighten loose threaded fittings, ensuring a watertight seal without over-tightening, which could cause damage.
4. Replace damaged parts: Swap out worn or corroded fittings with high-quality, uv-resistant materials to maintain consistent quality and system durability.
5. Check seals: Inspect gaskets, o-rings, or adhesive seals for wear, and reapply plumber’s tape or sealant where necessary to prevent leaks.
6. Protect from uv and pressure: Use premium materials for outdoor systems exposed to sunlight and ensure fittings are designed to handle system pressure.
7. Flush the system: Periodically flush the pipes and fittings to remove sediment or contaminants, ensuring clean water flow and preventing blockages.

Check out our Full Plumbing guide for more info: Rainwater Tank Plumbing Systems: Beginner’s Guide to Installation and Maintenance

How do you find leaks in pipe fittings?

To detect leaks in rainwater systems, inspect for visible signs of water seepage or corrosion. Start by examining unusual dampness around pipe fittings, use soapy water to detect leaks, check rainwater flush for irregularities, and inspect water pump covers for cracks or damage. Use an electronic level to ensure pipe alignment, verify proper functioning of float ball and pressure controller, and confirm correct hole aperture sizes.

How do pipe fittings prevent contamination?

Pipe fittings are important in rainwater systems to prevent contamination and maintain system integrity. Fire fittings ensure robust connections even under pressure. Rainwater tanks use filters, pumps, and gauges to monitor and maintain clean water flow. Poly water and pool systems offer corrosion resistance, reducing contamination risks. Electric pumps ensure efficient water movement, flushing out contaminants.

What is the lifespan of these fittings?

The lifespan of fittings in rainwater systems depends on the material, environmental conditions, and maintenance. Here’s an estimate based on common materials:

1. PVC fittings: Typically last 20-50 years if made from high-quality, uv-resistant material. Exposure to direct sunlight or extreme temperatures can reduce their lifespan.
2. Stainless steel fittings: Extremely durable, with a lifespan of 50+ years, resistant to rust and corrosion, making them ideal for long-term use.
3. Brass or copper fittings: Last 20-40 years, depending on water quality and exposure to corrosive elements.
4. Hdpe fittings: Can last 50+ years, especially in buried or shaded installations where uv exposure is minimal.
5. Rubber or silicone seals: Typically need replacement every 5-10 years, as they wear out faster than the fitting itself.

How do pipe fittings handle water pressure?

Rainwater systems use pipe fittings to handle specific water pressure levels, ensuring durability and longevity. Polyethylene and steel fittings are suitable for underground tanks due to their flexibility and resistance to corrosion. The top fitting manages pressure changes, and monitoring tools like gauges and dipsticks help maintain optimal pressure. Building extra tank capacity ensures pressure doesn’t exceed fitting limits, protecting the entire rainwater system from damage.

What problems occur with rainwater pipe fittings?

Rainwater pipe fittings can face several problems that impact the efficiency and durability of the system. Leaks are a common issue, often caused by improper sealing, misaligned connections, or degraded gaskets. Cracking or warping of fittings can occur due to prolonged uv exposure or extreme temperature fluctuations, especially in materials like non-uv-resistant PVC.

Blockages may develop when debris from gutters enters the system, clogging filters or narrow fittings. Corrosion can affect metal fittings if exposed to certain water qualities or environmental conditions, compromising their integrity over time. Poor installation practices, such as over-tightening threaded connections or using incompatible materials, can lead to weak joints and reduced performance.

How do these pipe fittings support sustainable water use?

Effective integration of durable pipe fittings in rainwater systems greatly contributes to sustainable water use by ensuring long-term reliability and reducing the need for frequent replacements.

These fittings connect slimline water tanks, underground water tanks, and pumps water tank systems, enabling efficient water harvesting.

With proper installation in a mini pump house or through a float hose, they minimise issues like holes with rainwater tanks, ensuring home poly tanks and tanks slimline steel remain functional.
